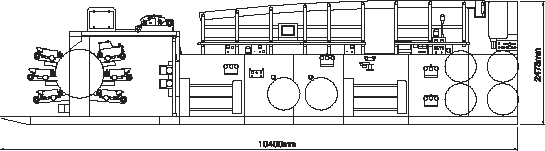

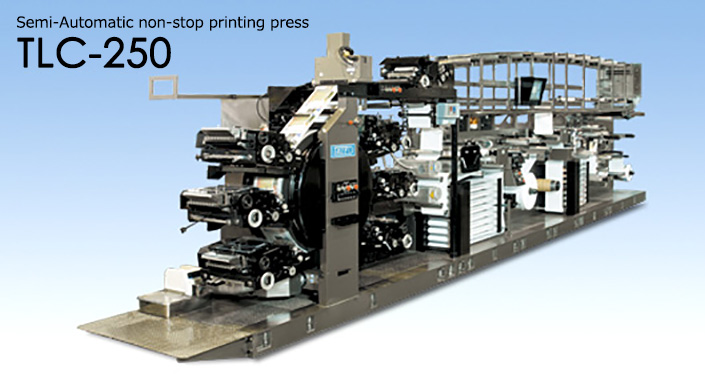

TLC-250 Semi Automatic

TLC SERIES

Laminate tube printing machine

Our laminate tube press is available for web width 250mm (TLC-250), 350mm (TLC-350) and 400mm (TLC-400).

Option itmes for TLC series can be equipped for example, hot stamping, cold stamping and rotary screen printing unit, etc. Standard laminte tube press with single unwinder and rewinder (or twin rewinders) are most selling in the world.

Specification

General Spec
Max. web width:260mm
Max. printing width:250mm
Max. unwind diameter:φ600mm
Max. rewind diameter:φ600mm
Max. waste rewind diamter:φ600mm
Print
Print repeat:193.675mm〜457.2mm
　　　　　（7-5/8"〜18"）
Gear increment:3.175mm（1/8"）
Max. speed
Rotary die cut:120m/min.

Option

Please see the details in the option page.

TCO-250

WET OFFSET CID PRINTING TOWER

TCF-250

FLEXO CID PRINTING TOWER

Non-Stop Unwinder※

Maximum 650mm dia x 2 unwind units can be equipped. Accumulator keeps web for the time to change web by operator.
※Collaboration with R-DEKO

Non-Stop Rewinder※

Maximum 630 mm dia x 4 rewind units can be equipped. Accumulator keeps web for thetime to change web by operator.
※Collaboration with R-DEKO

Full AC Servo Drive System※

Web thorough the press keeps always proper tension by full AC servo drive system. This brings minimum waste and quick change over.
※Collaboration with R-DEKO
