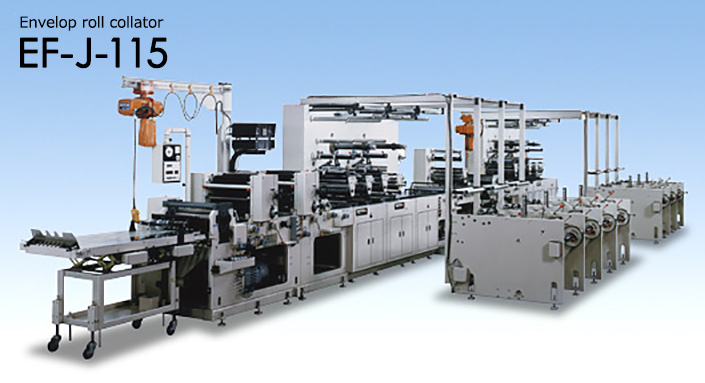

EF-J-115
EF-J SERIES
Envelop roll collator
Model EF-J is a collator to make delivery envelopes for express mail or courier service.
Model EF-J is a collator to make delivery envelopes for express mail or courier service. It is possible to make double cut envelopes and insert envelope with high quality and speed. EF-J meets various requirements from the customer.
Features
●Crimp lock, Glueing, Number imprint, Zig-zag folding or Sheet cutting.
●Easy to exchange folder unit and sheet cut uinit.
●Selective 700 mm dia. unwinder, 1,270 mm dia. unwinder or both type together.
●Transport is very stable with pin belt feeder.
●File punch and Cross perforation cassette can be used for TOF press.
Specification
Specifications
Max. paper width:18”
Min. paper width:4”
Max. unwind roll dia.:1,270mmφ（700mmφ）
Paper size
Envelop size:3”〜14”
Process Unit
Glue system :Electrical control type or glue wheel type
Double cut cylinder:12”〜20”
Paper inserting device:Change gear type
Number imprint unit:15”〜24”
Cross Perforation Unit:10”〜24”
Folding Unit:7”〜17”
Max. Process Unit
With Crimp :120m/min.
Option
High frequency dry Unit
Sheet cut Unit
Sheet cut batch delivery Unit
Sheet cut pile Unit
Astic taping Unit
For other devices, please consult to Taiyo.
